Product Code: K

OT Conical Fermenter

Start the ferment when the fruit arrives.Keep the tank working after it leaves.

An open-top conical red fermenter with cooling on the base and an optional Everseal™ VC lid — planned around how your fruit actually arrives, and what the tank does once vintage is over.

Function
Open-Top Red Fermentation
Size Range
2.5–30 kL / 680–8,000 gal
Cooling
Conical-base jacket
VC Lid
Everseal™ — optional

Why this tank

Ferments that start before the picking ends.

An OT Conical Fermenter is not chosen for its cone. It is chosen when harvest refuses to arrive all at once — blocks coming in over days, a fermenter filling progressively — and the first loads of must are sitting at the bottom of a tank whose wall jacket they may not even reach.

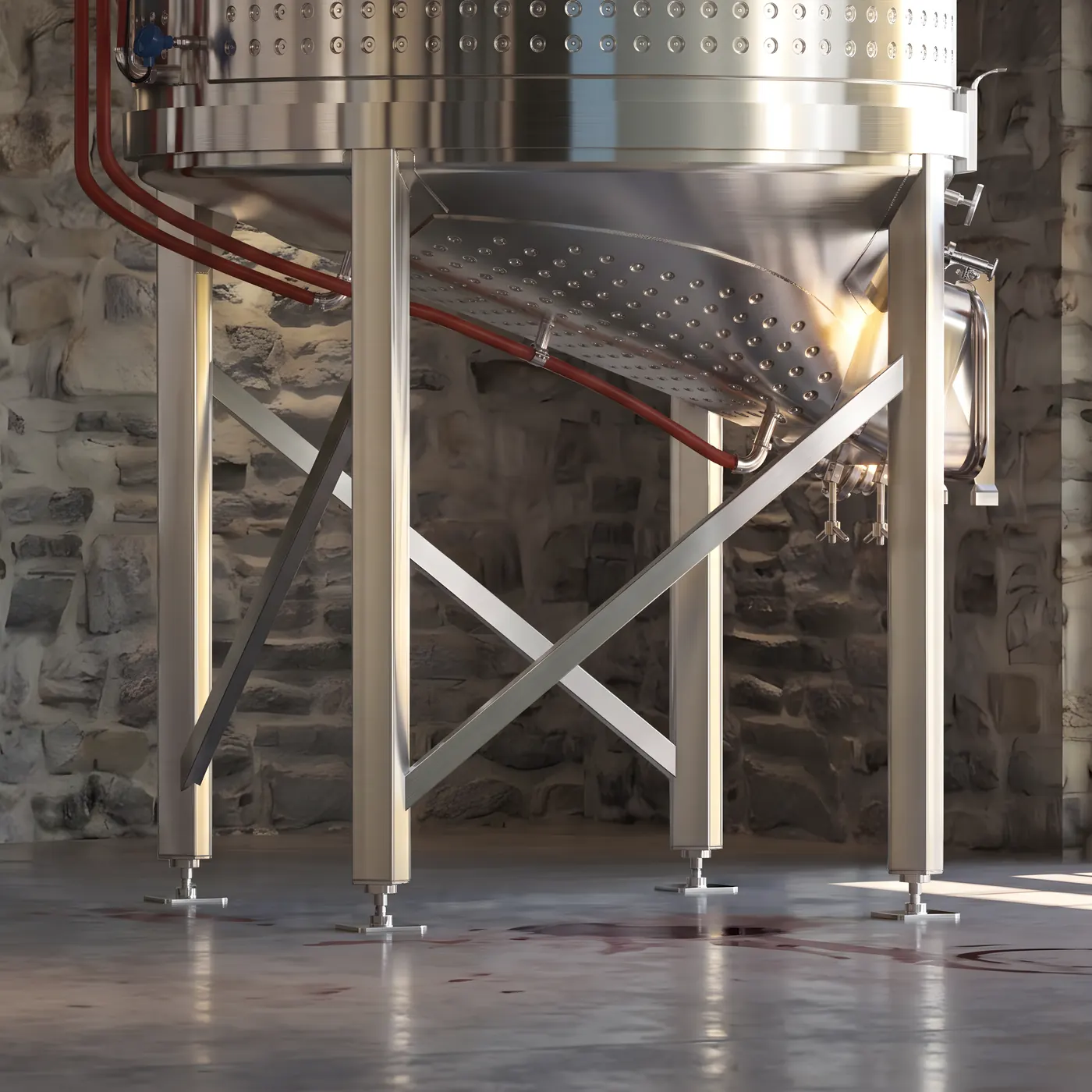

For the ferment, that means chilling starts where the must actually is: the cooling jacket sits on the conical base, so lower tonnages ferment properly in a larger tank instead of waiting for volume. For the cellar, filling can follow the way the vineyard picks rather than the way the equipment prefers.

The decision reaches past vintage. With an Everseal™ VC lid the same open-top fermenter becomes a variable-capacity aging and storage tank — so a tank bought for a few weeks of work stays useful through all four seasons.

01

Make progressive filling practical

With cooling at the conical base, chilling starts where the must actually is. The fermenter works at partial volume instead of waiting for full.

02

Keep one tank working all four seasons

Add an Everseal™ VC lid after fermentation and the open-top fermenter becomes an aging and storage tank — capacity that works through the year instead of one season.

03

Bring the tank count down

When a fermenter runs at lower tonnage and then holds wine year-round, the cellar needs fewer single-purpose tanks to cover the same program.

How Olavin designs

Cooling belongs where the must is, not where the jacket is.

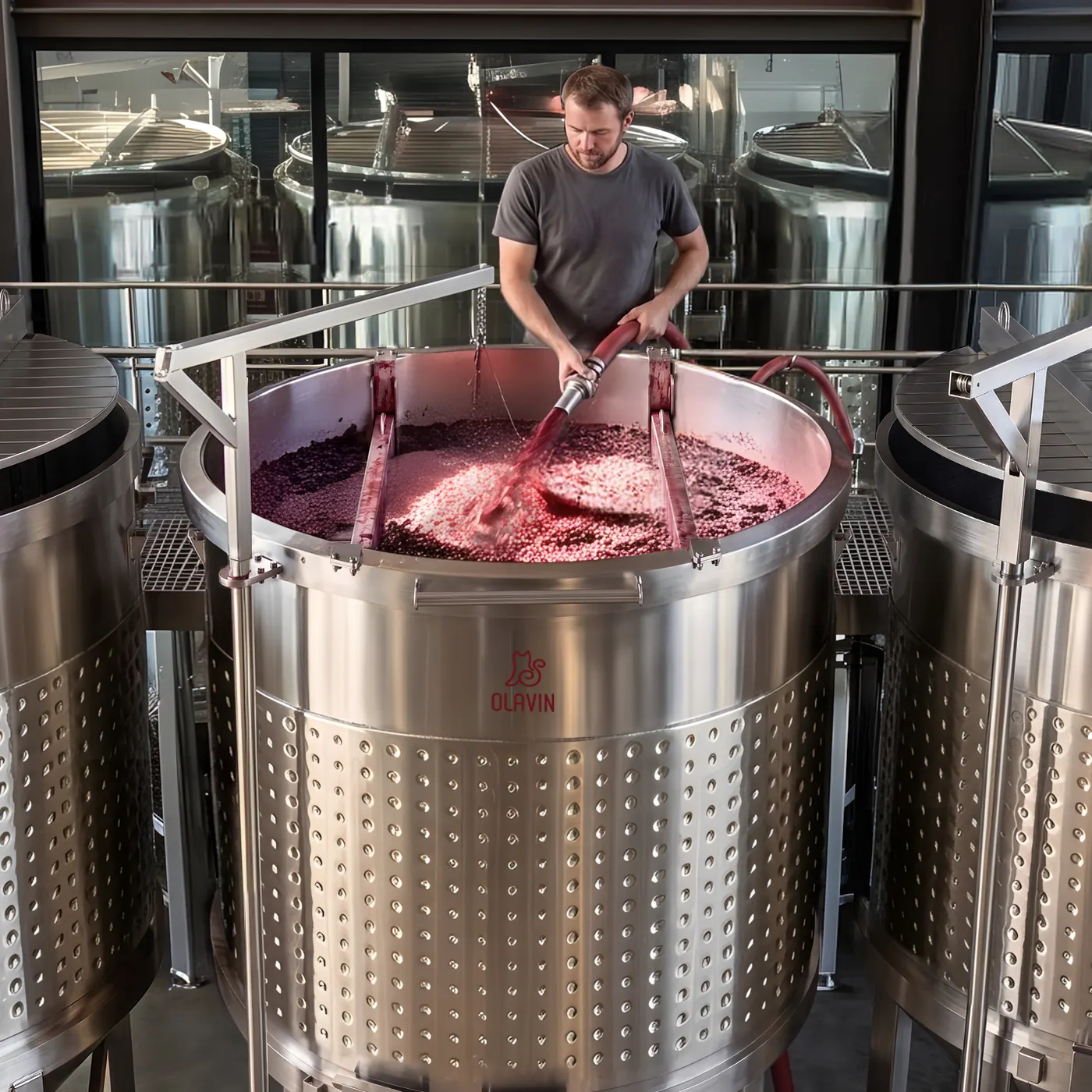

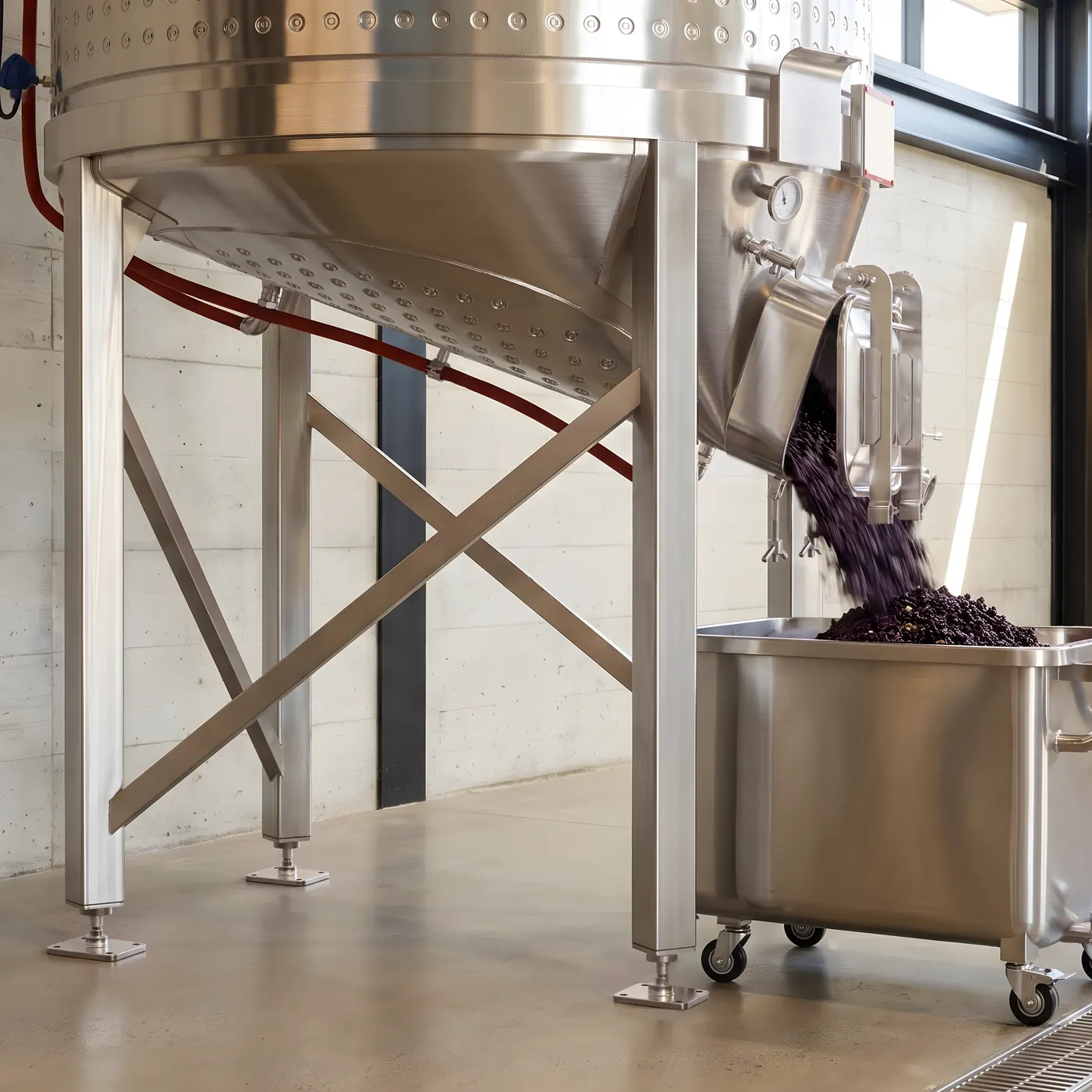

Olavin does not treat cooling as a wall the wine has to reach. We begin with how the fruit actually arrives, how close the team has to stay to the cap, what the tank does once vintage is over, and how the pomace leaves. Those decisions shape the format.

Specifications

Specification summary.

Sizing, materials, and configuration are finalized around the cellar: access, cleaning, temperature control, and layout.

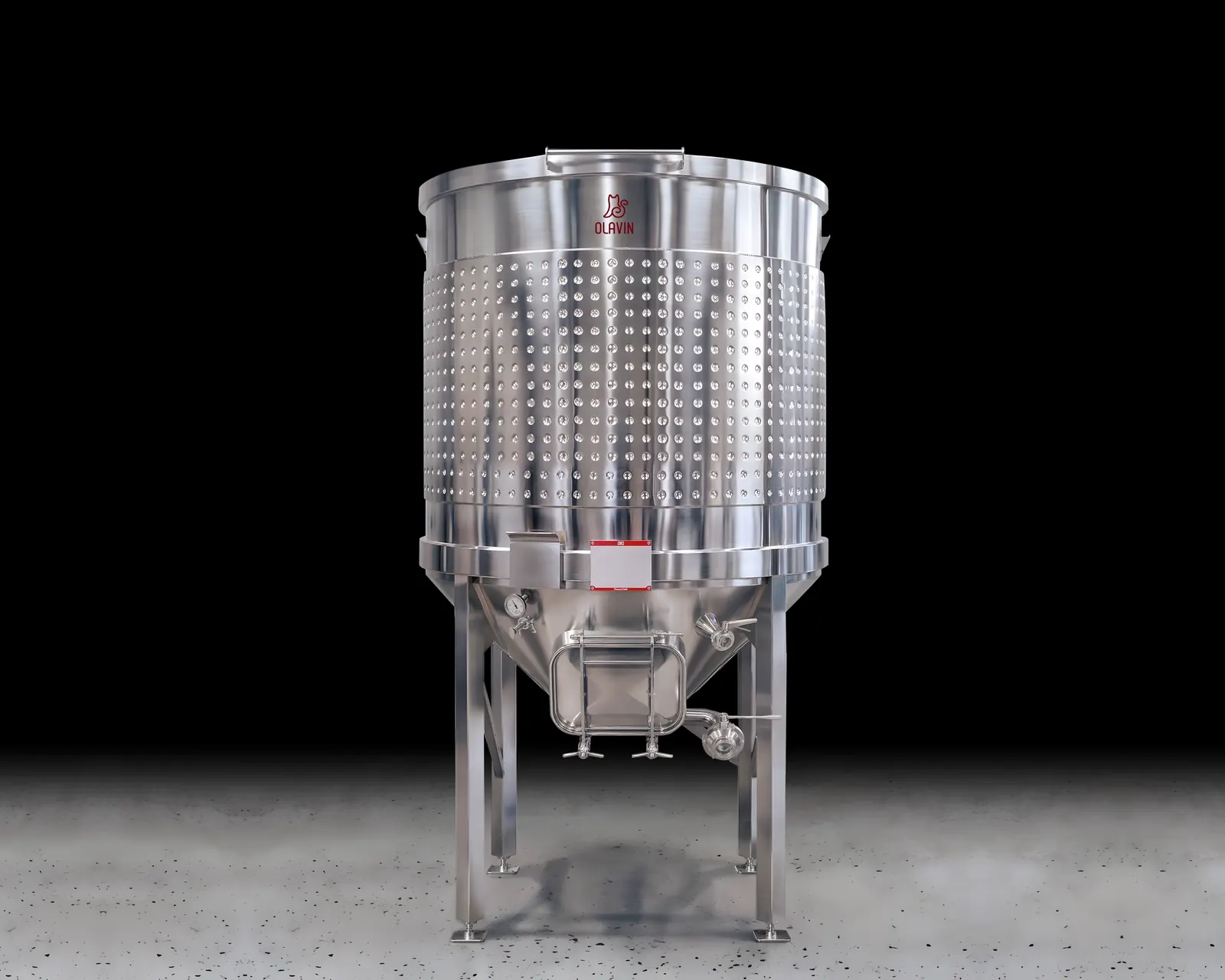

A single Olavin OT Conical Fermenter, open at the top and dimple-jacketed, with a cone bottom and a side door, standing on legs
Product Code
K
Product Name
OT Conical Fermenter
Primary Function
Red Fermentation
Size Range
2.5–30 kL / 680–8,000 gal
Material
All SS304
Cooling
Conical-base cooling jacket
VC Lid Option
Everseal™ VC lid — extends the tank to aging and storage roles
Customization
Available

Sizes & dimensions.

Classic sizes are listed here. Every dimension is finalized around the cellar it is going into.

SizeDi (mm)H1 (mm)H2 (mm)H (mm)
2 t1,5001,2198302,700
5 t2,0001,8288303,480
8 t2,1602,4388304,140
10 t2,2103,0008304,720
15 t2,7003,0008304,900
20 t3,1003,0008305,050

Classic sizes shown; customization is available across the range.

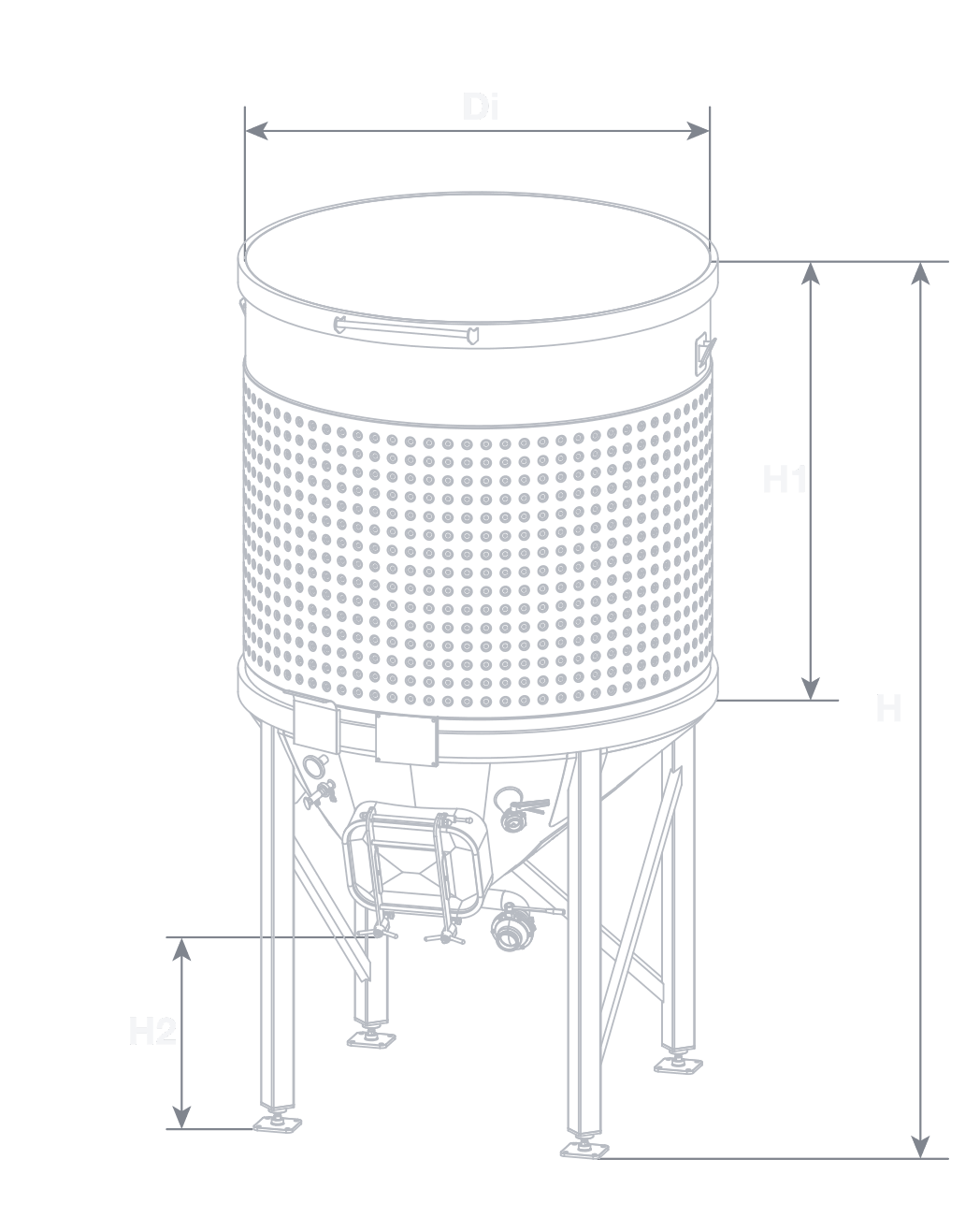

OT Conical Fermenter elevation drawing — open-top conical stainless steel wine tank with Di, H1, H2 and H dimension callouts

Planning Guide

Get the OT Conical Fermenter Planning Guide.

Inside the guide:

  • Progressive filling and cooling strategy notes
  • VC lid configuration and year-round role planning
  • Sizing across the 2.5–30 kL range
