Protect what the variety brings
Give the wine a more stable, manageable environment, then decide when protection matters and when air belongs in the process.
Product Code: A
Create the environment the wine needs.Keep the choices yours.

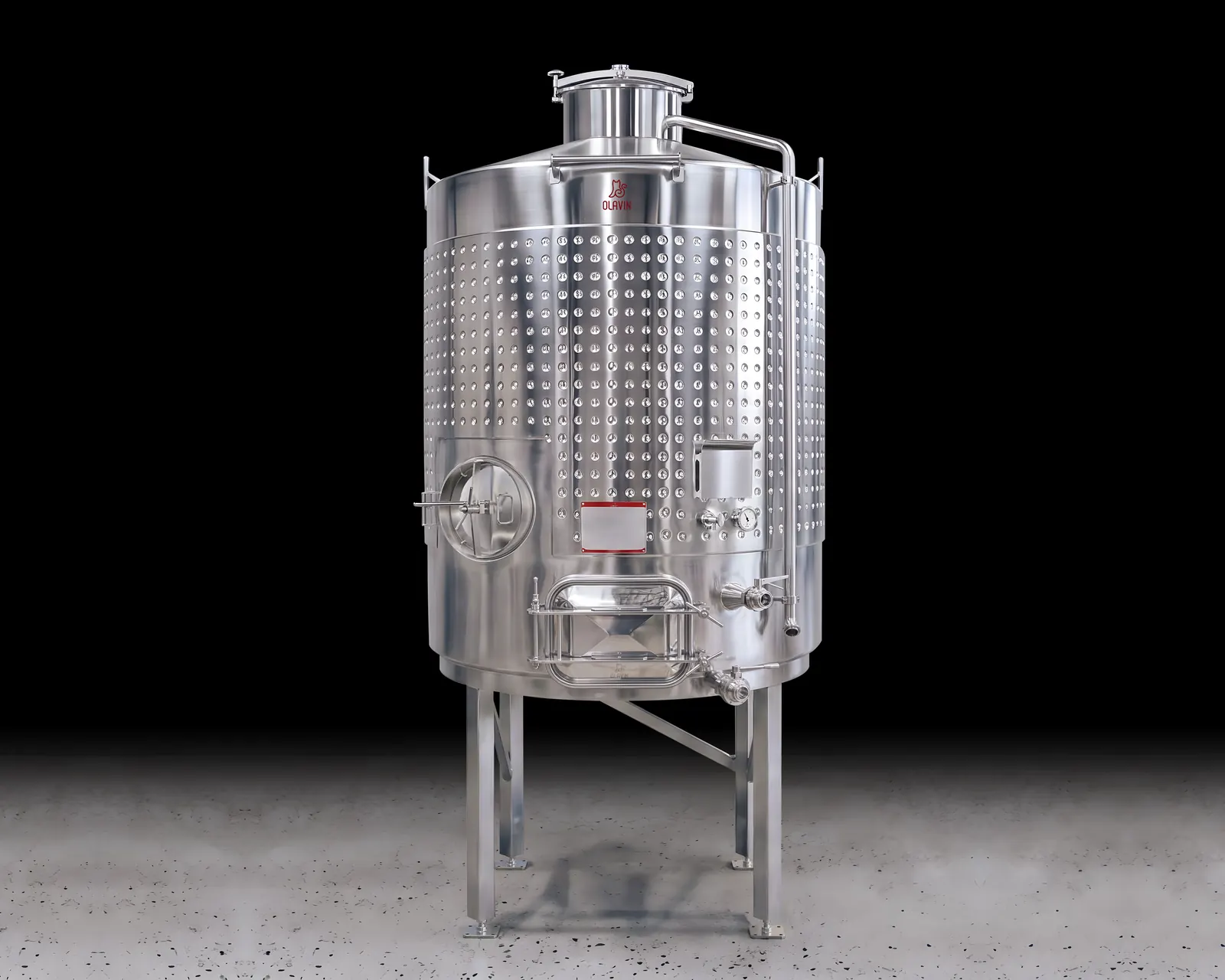

An enclosed, jacketed format for red and white fermentation, storage and aging — planned around the variety, the vintage and the way your cellar works.
Why this tank
An Enclosed Fermenter is not chosen simply because the tank is enclosed. It is chosen when the wine needs a more manageable fermentation environment, and the cellar needs the freedom to decide how that tank works from one batch to the next.
For red wine, that means beginning with the variety, the intended style, and the level of protection the wine needs. For the wider cellar, it means a jacketed format that can move into white fermentation, storage, or aging as the vintage unfolds.
The same decision continues after fermentation. Clear-wine recovery, draining, and cleaning shape the end of each batch just as much as temperature and access shape the beginning. The right tank plan keeps these decisions connected without forcing every wine into the same path.
01
Give the wine a more stable, manageable environment, then decide when protection matters and when air belongs in the process.
02
Move from red fermentation to white fermentation, storage, or aging as lots, timing, and cellar priorities change.
03

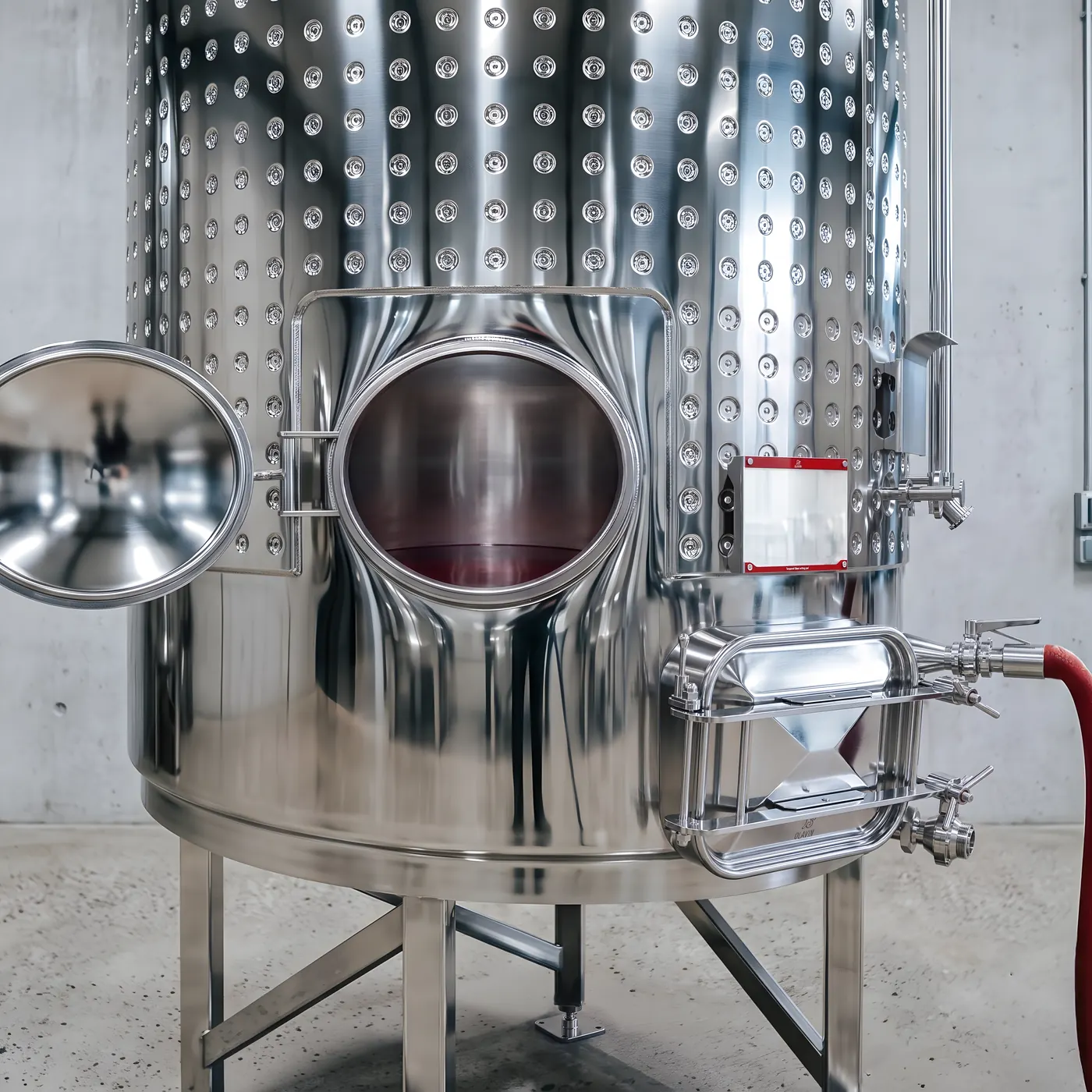

Racking, draining, and cleaning are part of the tank decision because they shape how clearly the team can finish one batch and prepare for the next.
System fit
Specifications
Sizing, materials, and configuration are finalized around the cellar: access, cleaning, temperature control, and layout.

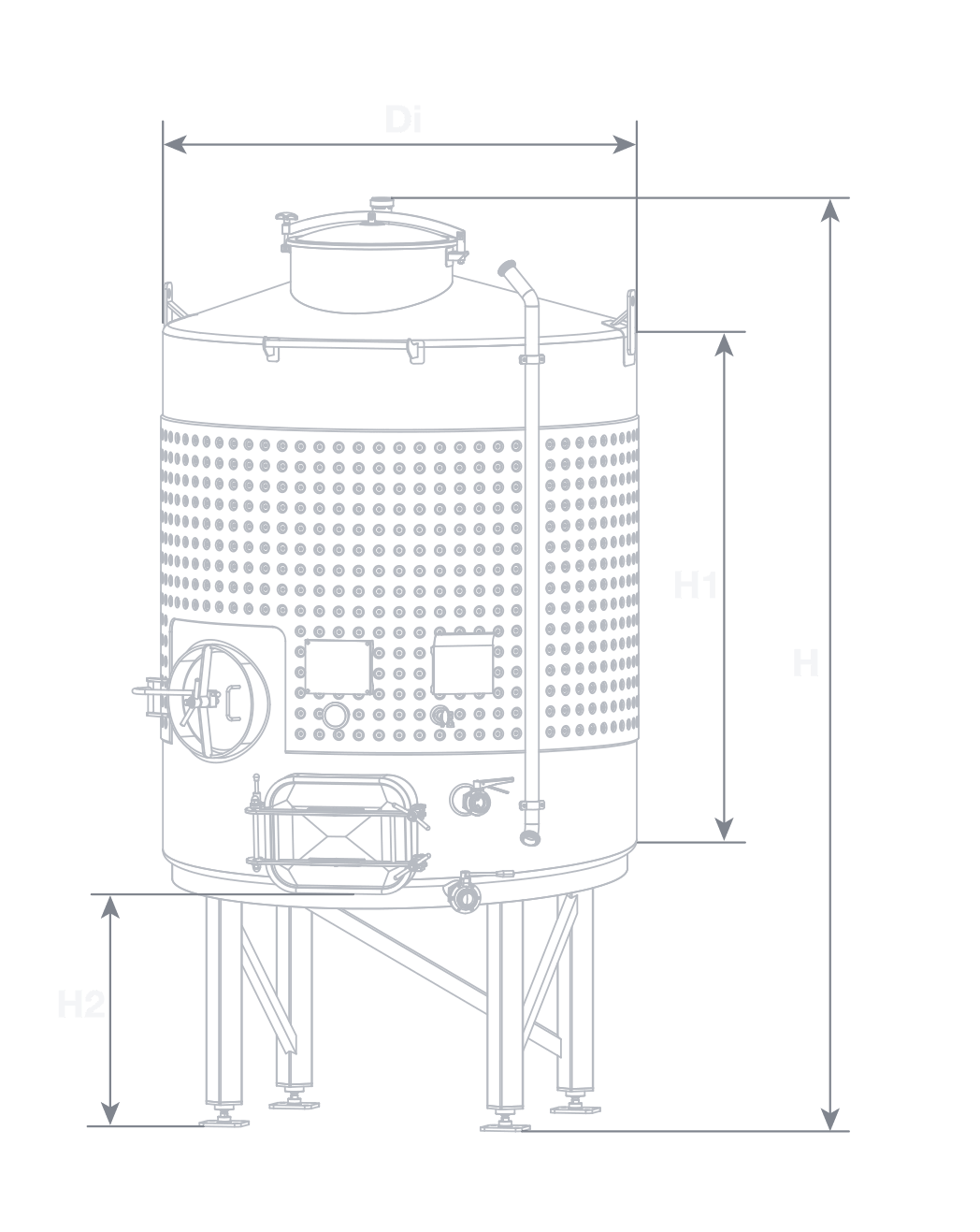

Classic sizes are listed here. Every dimension is finalized around the cellar it is going into.
| Size | Di (in) | H1 (in) | H2 (in) | H (in) |
|---|---|---|---|---|
| 1,000 gal | 63 | 72 | 33 | 130 |
| 1,500 gal | 74 | 79 | 33 | 139 |
| 2,000 gal | 83 | 83 | 33 | 143 |
| 3,000 gal | 87 | 118 | 33 | 178 |
| 5,000 gal | 89 | 190 | 33 | 252 |
| Size | Di (mm) | H1 (mm) | H2 (mm) | H (mm) |
|---|---|---|---|---|
| 2.5 kL | 1,400 | 1,719 | 830 | 3,130 |
| 5.0 kL | 1,770 | 2,000 | 830 | 3,475 |
| 10 kL | 2,200 | 2,719 | 830 | 4,250 |
| 15 kL | 2,250 | 3,750 | 830 | 5,300 |
| 20 kL | 2,250 | 5,000 | 830 | 6,580 |
Classic sizes shown; customization is available across the range.

Planning Guide
Inside the guide:
Related formats
The Enclosed Fermenter is the baseline most cellar plans start from. These formats extend the same enclosed logic into adjacent roles.
